COXREELS Motorized Hose Reels

Many COXREELS handcrank hose reel rewind models are also available with motorized rewind, with power options that include pneumatic, electric, and hydraulic motors for nearly every application. Click to view Motor Options
  • Adjustable solid rubber hose stop
  • Versatile guide arm
  • External fluid path with machined from solid brass 90° full-flow NPT swivel
  • High quality steel construction with a durable CPC powder coat finish
  • Enclosed factory tuned and matched cartridge style spring motor
  • Heavy duty spun discs
  • Heavy gauge 1/4" steel base & support post
  • Also available with stainless steel construction & swivel
  • "Super Hub™ equipped models: Increased reel strength for more demanding applications with multiple support to the axle
1125 Pure Flow Series

COXREELS 1125 Pure Flow Series

I.D: Up to 1/2"
Length: Up to 200'
Max PSI: Up to 6000
Hose/Cord/Cable Included: No

1125 Series

COXREELS 1125 Series

I.D: Up to 1"
Length: Up to 500'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1125-SS Series

COXREELS 1125-SS Series

I.D: Up to 3/4"
Length: Up to 200'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1125PCL Series

COXREELS 1125PCL Series

Length: Up to 250'
Amps: Up to 45 AMP
Volts: Up to 600V
Hose/Cord/Cable Included: No

1125WCL Series

COXREELS 1125WCL Series

Length: Up to 600' - 500' - 400' - 300'
Gauge: Up to #2 - #1 -#1/0 -#2/0
Amps: Up to 450 AMP
Hose/Cord/Cable Included: No

1175 Series

COXREELS 1175 Series

I.D: Up to 1"
Length: Up to 200'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1175-SS Series

COXREELS 1175-SS Series

I.D: Up to 1"
Length: Up to 200'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1185 Series

COXREELS 1185 Series

I.D: Up to 1 1/2"
Length: Up to 250'
Max PSI: Up to 1500
Hose/Cord/Cable Included: No

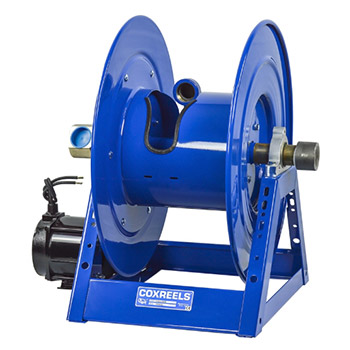

1185-BUXX Series

COXREELS 1185-BUXX Series

I.D: Up to 1 1/2"
Length: Up to 250'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1195 Series

COXREELS 1195 Series

I.D: Up to 2"
Length: Up to 125'
Max PSI: Up to 1000
Hose/Cord/Cable Included: No

1195-BUXX Series

COXREELS 1195-BUXX Series

I.D: Up to 2"
Length: Up to 125'
Max PSI: Up to 1500
Hose/Cord/Cable Included: No

1275 Series

COXREELS 1275 Series

I.D: Up to 1"
Length: Up to 200'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1275HP Series

COXREELS 1275HP Series

I.D: Up to 1/4"
Length: Up to 200'
Max PSI: Up to 10000
Hose/Cord/Cable Included: No

1275W Series

COXREELS 1275W Series

I.D: Up to 3/8"
Length: Up to 350'
Max PSI: Up to 200
Hose/Cord/Cable Included: Yes

1600 Series

COXREELS 1600 Series

I.D: Up to 1 1/2"
Length: Up to 625'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

1125 Series

COXREELS HP1125 Series

I.D: Up to 1/4"
Length: Up to 500'
Max PSI: Up to 5000
Hose/Cord/Cable Included: No

Storage Series

COXREELS Storage Series

For Storage Use Only: Up to 0
Hose/Cord/Cable Included: No
