COXREELS Spring Driven Hose Reels

COXREELS offers a variety of heavy-duty spring driven hose reels for various applications. Every COXREELS spring driven hose or cable reel has one thing in common: a powerful cartridge-style spring motor, tuned and matched at the factory. They are the worldwide leader in the hose reel industry and have been serving customers in residential, commercial and industrial settings since 1923.
  • Adjustable solid rubber hose stop
  • Versatile guide arm
  • External fluid path with machined from solid brass 90° full-flow NPT swivel
  • High quality steel construction with a durable CPC powder coat finish
  • Enclosed factory tuned and matched cartridge style spring motor
  • Heavy duty spun discs
  • Heavy gauge 1/4" steel base & support post
  • Also available with stainless steel construction & swivel
  • "Super Hub™ equipped models: Increased reel strength for more demanding applications with multiple support to the axle
300 Series

COXREELS 300 Series

I.D: Up to 6"
Length: Up to 40'
Hose/Cord/Cable Included: No

Alumi-Pro Series

COXREELS Alumi-Pro Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

C Air-Electric Series

COXREELS C Air-Electric Series

I.D: Up to 3/8"
Length: Up to 50'
Max PSI: Up to 300
AMPS: Up to 25
Hose/Cord/Cable Included: Yes

C Series

COXREELS C Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

DP Series

COXREELS DP Series

I.D: Up to 3/4"
Length: Up to 100'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

E Series

COXREELS E Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

EN Series

COXREELS EN Series

I.D: Up to 1/2"
Length: Up to 60'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

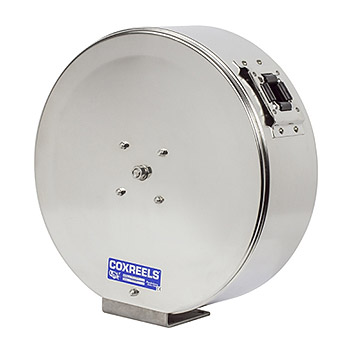

EN-SS Series

COXREELS EN-SS Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

LG Series

COXREELS LG Series

I.D: Up to 3/8"
Length: Up to 25'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

MP-SS Series

COXREELS MP-SS Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

MPD Series

COXREELS MPD Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 3000
Hose/Cord/Cable Included: Yes

Nitro-Pro Series

COXREELS Nitro-Pro Series

I.D: Up to 3/8"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

P Series

COXREELS P Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

P-SS Series

COXREELS P-SS Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: No

P-W Series

COXREELS P-W Series

I.D: Up to 1/4"
Length: Up to 40'
Max PSI: Up to 200
Hose/Cord/Cable Included: Yes

P-WC Series

COXREELS P-WC Series

Length: Up to 50'
Gauge: Up to 6GA
Amps: Up to 450
Volts: Up to 600
Hose/Cord/Cable Included: Yes

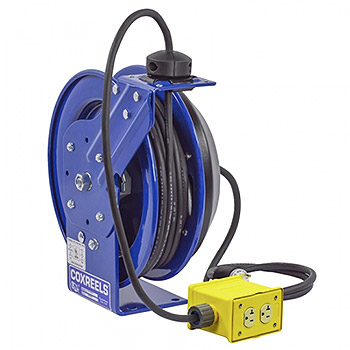

PC Series

COXREELS PC Series

Length: Up to 100'
Amps: Up to 35
Volts: Up to 120
Hose/Cord/Cable Included: Yes

PC10 Series

COXREELS PC10 Series

Length: Up to 30'
Amps: Up to 20
Volts: Up to 115
Hose/Cord/Cable Included: Yes

S Series

COXREELS S Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

SD Series

COXREELS SD Series

Length: Up to 100'
Hose/Cord/Cable Included: Yes

SG Series

COXREELS SG Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

SGW Series

COXREELS SGW Series

I.D: Up to 1/4"
Length: Up to 75'
Max PSI: Up to 200
Hose/Cord/Cable Included: Yes

SH Series

COXREELS SH Series

I.D: Up to 3/4"
Length: Up to 100'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

SH-DEF Series

COXREELS SH-DEF Series

I.D: Up to 3/4"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

SH-Fuel Series

COXREELS SH-Fuel Series

I.D: Up to 3/4"
Length: Up to 25'
Max PSI: Up to 300
Hose/Cord/Cable Included: No

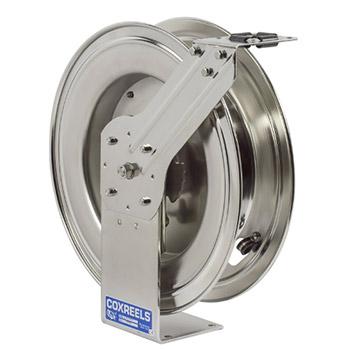

SH-SS Series

COXREELS SH-SS Series

I.D: Up to 3/4"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: No

SHW Series

COXREELS SHW Series

I.D: Up to 1/4"
Length: Up to 100'
Max PSI: Up to 200
Hose/Cord/Cable Included: Yes

SP Series

COXREELS SP Series

I.D: Up to 1 1/2"
Length: Up to 100'
Max PSI: Up to 2500
Hose/Cord/Cable Included: Yes

SP-Fuel Series

COXREELS SP-Fuel Series

I.D: Up to 1"
Length: Up to 100'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

SW Series

COXREELS SW Series

I.D: Up to 1/4"
Length: Up to 75'
Max PSI: Up to 200
Hose/Cord/Cable Included: Yes

T Series

COXREELS T Series

I.D: Up to 1"
Length: Up to 125'
Max PSI: Up to 5000
Hose/Cord/Cable Included: Yes

T-DEF Series

COXREELS T-DEF Series

I.D: Up to 1"
Length: Up to 50'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

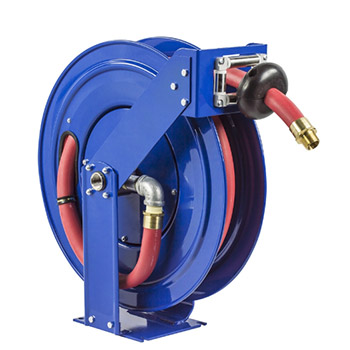

T-Fuel Series

COXREELS T-Fuel Series

I.D: Up to 1"
Length: Up to 75'
Max PSI: Up to 300
Hose/Cord/Cable Included: Yes

T-SS Series

COXREELS T-SS Series

I.D: Up to 3/4"
Length: Up to 100'
Max PSI: Up to 3000
Hose/Cord/Cable Included: No

TDMP Series

COXREELS TDMP Series

I.D: Up to 1/2"
Length: Up to 50'
Max PSI: Up to 3000
Hose/Cord/Cable Included: Yes

V Series

COXREELS V Series

I.D: Up to 1 1/2"
Length: Up to 25'
Hose/Cord/Cable Included: No
