1275 Series

Coxreels 1275 Series

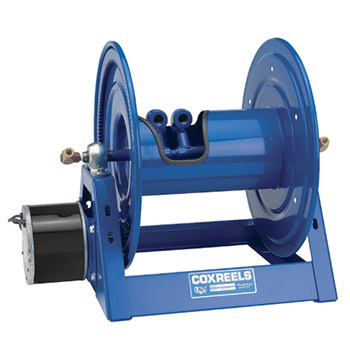

Coxreels® 1275 Series "Dual Hose" motorized hose reels are intended for large capacity applications. This series features dual plumbing with two swivel inlets and two low profile outlets that compliment the open drum slot and provide a non-crimping, flat smooth hose wrap. The industry preferred one piece all welded "A" frame design adds rigidity and strength. Meanwhile, the positive gear drive rewind assures consistent trouble-free performance.
Click to view Motor Options

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Medium Pressure Models

  Quantity Add to
Quote		 Model Lbs Hose I.D. O.D. Ft. PSI
1275-4-100-A 57 N 1/2" 7/8" 100 3000
1275-4-100-E 79 N 1/2" 7/8" 100 3000
1275-4-100-EA 79 N 1/2" 7/8" 100 3000
1275-4-100-EB 68 N 1/2" 7/8" 100 3000
1275-4-100-ED 79 N 1/2" 7/8" 100 3000
1275-4-100-EF 55 N 1/2" 7/8" 100 3000
1275-4-100-EJ 79 N 1/2" 7/8" 100 3000
1275-4-100-H 69 N 1/2" 7/8" 100 3000
1275-4-150-A 62 N 1/2" 7/8" 150 3000
1275-4-150-E 84 N 1/2" 7/8" 150 3000
1275-4-150-EA 84 N 1/2" 7/8" 150 3000
1275-4-150-EB 68 N 1/2" 7/8" 150 3000
1275-4-150-ED 84 N 1/2" 7/8" 150 3000
1275-4-150-EF 55 N 1/2" 7/8" 150 3000
1275-4-150-EJ 84 N 1/2" 7/8" 150 3000
1275-4-150-H 74 N 1/2" 7/8" 150 3000
1275-4-200-A 71 N 1/2" 7/8" 200 3000
1275-4-200-E 98 N 1/2" 7/8" 200 3000
1275-4-200-EA 98 N 1/2" 7/8" 200 3000
1275-4-200-EB 82 N 1/2" 7/8" 200 3000
1275-4-200-ED 98 N 1/2" 7/8" 200 3000
1275-4-200-EF 69 N 1/2" 7/8" 200 3000
1275-4-200-EJ 98 N 1/2" 7/8" 200 3000
1275-4-200-H 83 N 1/2" 7/8" 200 3000
1275-4-50-A 55 N 1/2" 7/8" 50 3000
1275-4-50-E 77 N 1/2" 7/8" 50 3000
1275-4-50-EA 77 N 1/2" 7/8" 50 3000
1275-4-50-EB 66 N 1/2" 7/8" 50 3000
1275-4-50-ED 77 N 1/2" 7/8" 50 3000
1275-4-50-EF 53 N 1/2" 7/8" 50 3000
1275-4-50-EJ 77 N 1/2" 7/8" 50 3000
1275-4-50-H 53 N 1/2" 7/8" 50 3000
1275-6-100-A 79 N 1" 1-7/16" 100 3000
1275-6-100-E 84 N 1" 1-7/16" 100 3000
1275-6-100-EA 97 N 1" 1-7/16" 100 3000
1275-6-100-EB 97 N 1" 1-7/16" 100 3000
1275-6-100-ED 97 N 1" 1-7/16" 100 3000
1275-6-100-EF 87 N 1" 1-7/16" 100 3000
1275-6-100-EJ 97 N 1" 1-7/16" 100 3000
1275-6-100-H 79 N 1" 1-7/16" 100 3000
1275-6-150-A 93 N 1" 1-7/16" 150 3000
1275-6-150-E 98 N 1" 1-7/16" 150 3000
1275-6-150-EA 111 N 1" 1-7/16" 150 3000
1275-6-150-EB 111 N 1" 1-7/16" 150 3000
1275-6-150-ED 111 N 1" 1-7/16" 150 3000
1275-6-150-EF 101 N 1" 1-7/16" 150 3000
1275-6-150-EJ 111 N 1" 1-7/16" 150 3000
1275-6-150-H 93 N 1" 1-7/16" 150 3000
1275-6-50-A 68 N 1" 1-7/16" 50 3000
1275-6-50-E 73 N 1" 1-7/16" 50 3000
1275-6-50-EA 86 N 1" 1-7/16" 50 3000
1275-6-50-EB 86 N 1" 1-7/16" 50 3000
1275-6-50-ED 86 N 1" 1-7/16" 50 3000
1275-6-50-EF 76 N 1" 1-7/16" 50 3000
1275-6-50-EJ 86 N 1" 1-7/16" 50 3000
1275-6-50-H 66 N 1" 1-7/16" 50 3000
1275-6-75-A 73 N 1" 1-7/16" 75 3000
1275-6-75-E 78 N 1" 1-7/16" 75 3000
1275-6-75-EA 93 N 1" 1-7/16" 75 3000
1275-6-75-EB 93 N 1" 1-7/16" 75 3000
1275-6-75-ED 93 N 1" 1-7/16" 75 3000
1275-6-75-EF 81 N 1" 1-7/16" 75 3000
1275-6-75-EJ 93 N 1" 1-7/16" 75 3000
1275-6-75-H 73 N 1" 1-7/16" 75 3000
Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Maximum temperature 250° F. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • Two machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • Two exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
  • Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, and hydraulic motor.
  • Reliable direct gear drive on motor driven models - No chain.
  • Bevel gear hand crank with removable handle for compact storage.
  • Click to view Motor Options
  • Also available in hand crank options.
  • Two low profile outlet risers & open drum slot design for dual hose applications.
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
  • Swivel Seals: NITRILE
  • Swivel O-ring seals supported by Teflon spacers.

Applications

Twin Agent Applications
Fire Suppression
Offshore Oil Rigs
Shipyard & Port Operations
Hydraulic
Mining Operations
Aircraft Maintenance
Petroleum
Production Fields

Dimensions for 1275 Series motorized Reels from Coxreels

Medium Pressure Models

Model W H L M N X Y
1275-4-100-A 23-7/8" 18-5/8" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-E 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-EA 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-EB 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-ED 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-EF 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-EJ 26-5/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-100-H 23-7/8" 19-13/100" 17-5/8" 15-11/25" 10" 17-3/8" 16"
1275-4-150-A 29-7/8" 18-5/8" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-E 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-EA 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-EB 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-ED 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-EF 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-EJ 32-5/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-150-H 29-7/8" 19-13/100" 17-5/8" 21-11/25" 10" 23-3/8" 16"
1275-4-200-A 35-7/8" 18-5/8" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-E 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-EA 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-EB 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-ED 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-EF 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-EJ 38-5/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-200-H 35-7/8" 19-13/100" 17-5/8" 27-11/25" 10" 29-3/8" 16"
1275-4-50-A 18-7/8" 18-5/8" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-E 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-EA 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-EB 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-ED 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-EF 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-EJ 22-5/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-4-50-H 19-7/8" 19-13/100" 17-5/8" 11-11/25" 10" 13-3/8" 16"
1275-6-100-A 34-1/4" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-E 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-EA 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-EB 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-ED 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-EF 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-EJ 37" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-100-H 34-1/2" 26-13/100" 24" 23-3/8" 13-3/4" 25-1/2" 20-3/8"
1275-6-150-A 34-1/4" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-E 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-EA 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-EB 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-ED 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-EF 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-EJ 37" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-150-H 34-1/4" 30-3/50" 28" 23-3/8" 13-3/4" 25-1/2" 22-14/25"
1275-6-50-A 27-3/4" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-E 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-EA 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-EB 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-ED 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-EF 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-EJ 30-5/8" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-50-H 27-3/4" 22-7/8" 20" 16-81/100" 13-3/4" 19" 18-7/8"
1275-6-75-A 27-3/4" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-E 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-EA 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-EB 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-ED 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-EF 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-EJ 30-5/8" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
1275-6-75-H 27-3/4" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-3/8"
