P-WC Series

COXREELS P-WC Series

COXREELS® P-WC Series spring driven "Welding Cable" reels neatly and conveniently store welding cable on a 25, 35 or 50 foot self-retracting welding cable reel, which protects and extends the life of your welding cable. The P-WC Series is designed to keep your work area safe, organized and efficient.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Model Lbs Cord AWG/No Volts Ft AMPs
P-WC13-3506 31 Y 6GA 600 35 75
P-WC13L-3506 26 N 6GA 600 35 75
P-WC13-5006 35 Y 6GA 600 50 75
P-WC13L-5006 28 N 6GA 600 50 75
P-WC13-3504 34 Y 4GA 600 35 150
P-WC13L-3504 26 N 4GA 600 35 150
P-WC13-5004 39 Y 4GA 600 50 150
P-WC13L-5004 28 N 4GA 600 50 150
P-WC13-3502 36 Y 2GA 600 35 225
P-WC13L-3502 26 N 2GA 600 35 225
P-WC17-5002 56 Y 2GA 600 50 225
P-WC17L-5002 42 N 2GA 600 50 225
P-WC13-2501 35 Y 1GA 600 25 300
P-WC13L-2501 26 N 1GA 600 25 300
P-WC17-5001 60 Y 1GA 600 50 300
P-WC17L-5001 42 N 1GA 600 50 300
P-WC13-2510 37 Y 1/0 600 25 350
P-WC13L-2510 26 N 1/0 600 25 350
P-WC17-5010 64 Y 1/0 600 50 350
P-WC17L-5010 42 N 1/0 600 50 350
P-WC17-3520 60 Y 2/0 600 50 450
P-WC17L-3520 42 N 2/0 600 35 450
P-WC17-5020 68 Y 2/0 600 50 450
P-WC17L-5020 42 N 2/0 600 50 450

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
  • External, easily accessible heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
  • Electrical current runs through a 450 AMP rated slip ring
  • Designed for electrode & grounding lead applications (each lead requires an individual reel)
  • Single pedestal reel with space saving design facilitates workplace organization
  • Welding cable clamp available (see accessory page )
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures cable at desired length

Applications

Manufacturing Plants & Facilities
Maintenance, Repair & Operations
Welding / Service Trucks
Welding Shops
Garage Settings
Pipelines
Mining, Construction & Railroad Operations
Marine / Ship Building / Offshore

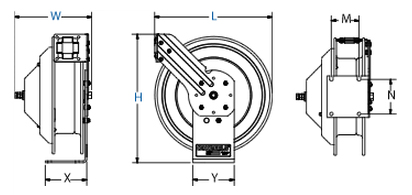

Dimensions for p-wc Series Spring Driven Reels from Coxreels
Model W H L M N X Y
P-WC13-3506 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-3506 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13-5006 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-5006 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13-3504 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-3504 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13-5004 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-5004 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13-3502 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-3502 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC17-5002 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17L-5002 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC13-2501 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC13L-2501 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC17-5001 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17L-5001 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC13-2510 8-1/2" 14-1/2" 13-3/4" 3" 5" 6" 6"
P-WC13L-2510 8-1/2" 14-1/2" 13-3/4" 3" 5" 5" 6"
P-WC17-5010 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17L-5010 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17-3520 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17L-3520 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17-5020 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
P-WC17L-5020 11" 18-1/4" 17-1/4" 4" 5" 6" 6"
