1195 Series

Coxreels 1195 Series

Coxreels® 1195 Series motor driven hose reels are designed to increased volume delivery by handling long lengths of large diameter hose. Coxreels® exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base supply extraordinary strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.
Click to view Motor Options

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Low Pressure Models

  Quantity Add to
Quote		 Model Lbs Hose I.D. O.D. Ft. PSI
1195-1332-AB 165 N 2" 2-9/16" 75 1000
1195-1332-EA 174 N 2" 2-9/16" 75 1000
1195-1332-EB 174 N 2" 2-9/16" 75 1000
1195-1332-ED 174 N 2" 2-9/16" 75 1000
1195-1332-EJ 174 N 2" 2-9/16" 75 1000
1195-1332-H 164 N 2" 2-9/16" 75 1000
1195-1728-AB 141 N 2" 2-9/16" 60 1000
1195-1728-EA 160 N 2" 2-9/16" 60 1000
1195-1728-EB 160 N 2" 2-9/16" 60 1000
1195-1728-ED 147 N 2" 2-9/16" 60 1000
1195-1728-EJ 160 N 2" 2-9/16" 60 1000
1195-1728-H 140 N 2" 2-9/16" 60 1000
1195-2032-AB 203 N 2" 2-9/16" 115 1000
1195-2032-EA 212 N 2" 2-9/16" 115 1000
1195-2032-EB 212 N 2" 2-9/16" 115 1000
1195-2032-ED 199 N 2" 2-9/16" 115 1000
1195-2032-EJ 212 N 2" 2-9/16" 115 1000
1195-2032-H 202 N 2" 2-9/16" 115 1000
1195-2428-AB 186 N 2" 2-9/16" 90 1000
1195-2428-EA 195 N 2" 2-9/16" 90 1000
1195-2428-EB 195 N 2" 2-9/16" 90 1000
1195-2428-ED 182 N 2" 2-9/16" 90 1000
1195-2428-EJ 195 N 2" 2-9/16" 90 1000
1195-2428-H 185 N 2" 2-9/16" 90 1000
1195-3228-AB 235 N 2" 2-9/16" 125 1000
1195-3228-EA 244 N 2" 2-9/16" 125 1000
1195-3228-EB 244 N 2" 2-9/16" 125 1000
1195-3228-ED 231 N 2" 2-9/16" 125 1000
1195-3228-EJ 244 N 2" 2-9/16" 125 1000
1195-3228-H 234 N 2" 2-9/16" 125 1000
1195-932-AB 145 N 2" 2-9/16" 50 1000
1195-932-EA 154 N 2" 2-9/16" 50 1000
1195-932-EB 154 N 2" 2-9/16" 50 1000
1195-932-ED 141 N 2" 2-9/16" 50 1000
1195-932-EJ 154 N 2" 2-9/16" 50 1000
1195-932-H 144 N 2" 2-9/16" 50 1000
Models with hose are for air or water service with a maximum temperature 150° F. Models less hose can be used for air, water or oil. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
  • Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • Robust lubricated horizontal surface mount bearings for easy rotation.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, and hydraulic motor.
  • Reliable chain & sprocket drive on motor driven models.
  • Bevel geared crank rewind (On models with suffix -C)
  • Click to view Motor Options
  • Also available in hand crank options.
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Robust lubricated horizontal surface mount bearings for easy rotation.
  • Adaptor for Victaulic connections available, ask your representative for details.
  • External fluid path with in-line electroless nickel plated steel full-flow NPT swivel inlet.
  • Swivel Seals: NITRILE.

Applications

High Volume Delivery
Bulk Liquid Handling
Water Trucks
Mining Operations
Construction Sites
Farming
Chemical Fluid Transfer
Aviation Refuiling
Fuel Trucks

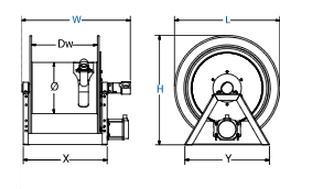

Dimensions for 1195 Series motorized Reels from Coxreels

Low Pressure Models

Model W H L M N X Y
1195-1332-AB 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1332-EA 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1332-EB 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1332-ED 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1332-EJ 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1332-H 26-3/4" 33-1/4" 32" 16-3/4" 18-1/2" 19" 25-5/8"
1195-1728-AB 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-1728-EA 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-1728-EB 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-1728-ED 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-1728-EJ 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-1728-H 33-1/4" 30-1/4" 28" 23-1/4" 18-1/2" 23" 24-1/2"
1195-2032-AB 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2032-EA 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2032-EB 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2032-ED 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2032-EJ 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2032-H 30-3/4" 33-1/4" 32" 20-3/4" 18-1/2" 25-1/2" 25-5/8"
1195-2428-AB 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-1/2"
1195-2428-EA 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-1/2"
1195-2428-EB 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-5/8"
1195-2428-ED 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-1/2"
1195-2428-EJ 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-1/2"
1195-2428-H 37-1/4" 30-1/4" 28" 27-1/4" 18-1/2" 29-1/2" 24-1/2"
1195-3228-AB 42-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-3228-EA 45-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-3228-EB 45-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-3228-ED 45-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-3228-EJ 45-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-3228-H 45-1/4" 30-1/4" 28" 35-1/4" 18-1/2" 37-1/2" 24-1/2"
1195-932-AB 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
1195-932-EA 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
1195-932-EB 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
1195-932-ED 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
1195-932-EJ 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
1195-932-H 22-3/4" 33-1/4" 32" 12-3/4" 18-1/2" 15" 25-5/8"
