SM Series

COXREELS SM Series

COXREELS® SM Series "Swivel Mount" hand crank hose reels swivel in the direction your work takes you and locks in eight different positions of your choice. The SM Series is lightweight, compact and versatile with a working pressure up to 4,000 PSI. The "U" shaped base and hose control bar, together add strength while keeping the hose from slipping off the side discs.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

High Pressure Models

Model Lbs Hose I.D. O.D. Ft. PSI
SM12-3-100 15 N 3/8" 5/8" 100 4000
SM17-3-250 19 N 3/8" 5/8" 250 4000
SM17-4-125 19 N 1/2" 7/8" 125 4000
Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum temp. 250° F. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Forward-weighted solid one piece, heavy gauge steel frame design ensures rotation in direction of use.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
  • Unique hose control bar keeps hose from slipping off the disc from any direction.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, direct hand crank for easy mechanical retraction, and optional 8-position mount bracket.
  • Direct hand crank rewind.
  • Professional grade, swivel mount hand crank reel.
  • Forward-weighted design ensures rotation in direction of use.
  • Solid one piece, heavy gauge steel frame.
  • Unique hose control bar keeps hose from slipping off the disc from any direction.
  • Optional 8-position swivel mount wall mount bracket with lock pin.
  • Garden hose kit available, see accessories.
  • Up to 4,000 PSI working pressure.

Applications

Water Supply
Washdown
Pressure Washing
Agricultural Spraying
Chemical Fluid Transfer
Industrial Facilities Maintenance
Ground Maintenance
Farming
Construction Sites
General Landscape / Turf Care
Home Gardening

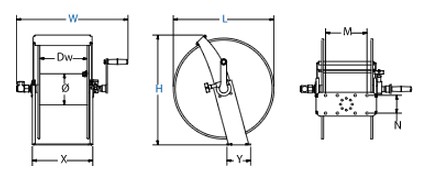

Dimensions for SM Series Hand Crank Reels from Coxreels

High Pressure Models

Model W H L M N X Y
SM12-3-100 19" 13-1/2" 12" 7" 3" 10-1/4" 4"
SM17-3-250 19" 18-1/2" 17" 7" 3" 10-1/4" 4"
SM17-4-125 19" 18-1/2" 17" 7" 3" 10-1/4" 4"
