COXREELS SDH Series

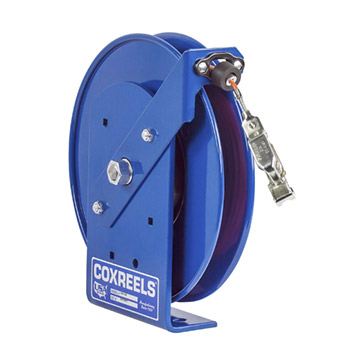

COXREELS® SDH Series "Static Discharge" cable reels are built heavy duty for long lasting performance. They are particularly design to be used in combustible environments, where the static buildup could ignite a spark and consequently an explosion.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Model Lbs Hose Ft.
SDH-100 13 Y 100
SDH-100-1 13 Y 100
SDH-200 15 Y 200
SDH-200-1 15 Y 200
SDHL-200 10 N 200

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • Compact static discharge cable reel with direct hand crank retraction.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
  • Simple design with direct hand crank action.
  • Compact static discharge cable reel available in spring rewind or direct hand crank retraction.
  • Commonly paired with fuel reels & used in combustible environment for grounding purposes.
  • Guide arm adjusts to wall, floor, vehicle & overhead positions.
  • Solid one piece, heavy gauge ¼" steel base for maximum stability.
  • 1" solid steel axle & lubricated precision bearings for smooth rotation.
  • Bottom of the base is not powder coated to ensure proper grounding of the reel.
  • Available with 7 strand x 7 wire galvanized steel or stainless steel 3/32" cable.
  • High visibility orange vinyl cable cover (O.D.= 5/32" with cable cover).
  • Includes cable, ball stop & 50 Amp grounding clamp (100 Amp copper grounding clamp available, consult factory).

Applications

Fuel / Service Trucks
Fuel Storage & Dispensing Systems
Ground Support
Aviation Static Grounding
Aviation Refueling
Vehicle Refueling
Marine / Ship Refuiling / Offshore Oil Refinery

Dimensions for SDH Series Hand Crank Reels from Coxreels
Model W H L M X Y
SDH-100 5-3/4" 11-1/2" 11" 4" 2-1/2" 6"
SDH-100-1 5-3/4" 11-1/2" 11" 4" 2-1/2" 6"
SDH-200 5-3/4" 11-1/2" 11" 4" 2-1/2" 6"
SDH-200-1 5-3/4" 11-1/2" 11" 4" 2-1/2" 6"
SDHL-200 5-3/4" 11-1/2" 11" 4" 2-1/2" 6"
