1175 Series

Coxreels 1175 Series

Coxreels® 1175 Series hand crank hose reels is built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded "A" frame base, low profile outlet riser open drum slot design for smooth even hose wraps around the drum making it an industry preferred design.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Medium Pressure Models

  Quantity Add to
Quote		 Model Lbs Hose I.D. O.D. Ft. PSI
1175-6-100 67 N 1" 1-7/16" 100 3000
1175-6-100-C 73 N 1" 1-7/16" 100 3000
1175-6-125 72 N 1" 1-7/16" 125 3000
1175-6-125-C 75 N 1" 1-7/16" 125 3000
1175-6-135 70 N 1" 1-7/16" 135 3000
1175-6-135-C 73 N 1" 1-7/16" 135 3000
1175-6-150 75 N 1" 1-7/16" 150 3000
1175-6-150-C 78 N 1" 1-7/16" 150 3000
1175-6-200 83 N 1" 1-7/16" 200 3000
1175-6-200-C 78 N 1" 1-7/16" 200 3000
1175-6-50 67 N 1" 1-7/16" 50 3000
1175-6-50-C 70 N 1" 1-7/16" 50 3000
Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Maximum temperature 250° F. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
  • Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.
  • Solid steel direct hand crank with smooth round handle.
  • Also available in motorized options.
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
  • Long-handled locking pin to secure reel from rotation during transport or storage.
  • Swivel Seals: AFLAS

Applications

Water Trucks
Construction Sites
Fire Suppression
Chemical Fluid Transfer
Lubricant Dispensing
Farming
High-Flow Watering
Chemical Fluid Transfer

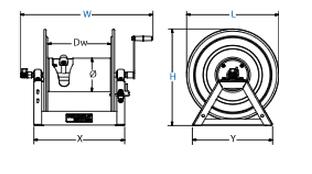

Dimensions for 1175 Series Hand Crank Reels from Coxreels

Medium Pressure Models

Model W H L M N X Y
1175-6-100 28-13/100" 26-13/100" 24" 14-81/100" 13-3/4" 17" 20-13/100"
1175-6-100-C 28-13/100" 26-13/100" 24" 14-81/100" 13-3/4" 17" 20-13/100"
1175-6-125 30-13/100" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-13/100"
1175-6-125-C 30-13/100" 26-13/100" 24" 16-81/100" 13-3/4" 19" 20-13/100"
1175-6-135 36-5/8" 22" 20" 23-31/100" 13-3/4" 25-1/2" 18-13/100"
1175-6-135-C 36-5/8" 22" 20" 23-31/100" 13-3/4" 25-1/2" 18-13/100"
1175-6-150 32-13/100" 26-13/100" 24" 18-81/100" 13-3/4" 21" 20-13/100"
1175-6-150-C 32-13/100" 26-13/100" 24" 18-81/100" 13-3/4" 21" 20-13/100"
1175-6-200 36-5/8" 26-13/100" 24" 23-31/100" 13-3/4" 25-1/2" 20-13/100"
1175-6-200-C 36-5/8" 26-13/100" 24" 23-31/100" 13-3/4" 25-1/2" 20-13/100"
1175-6-50 24-13/100" 26-13/100" 24" 10-31/100" 13-3/4" 13" 20-13/100"
1175-6-50-C 24-13/100" 26-13/100" 24" 10-31/100" 13-3/4" 13" 20-13/100"
